Hp
30 - 70
URT HF
Hp 30 - 70

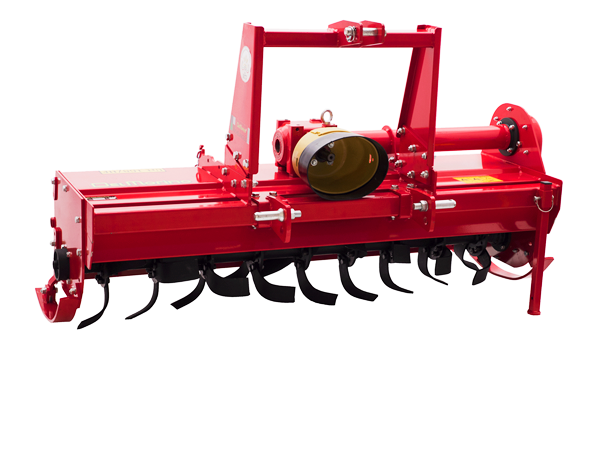

Overview
This machine is a prime example of Del Morino’s design engineering and stands for quality in material selection and results. It is ideal for professional farmers working in open fields.
Also called: Hoe, milling machine
KW
30 -50
Rpm
540
cm 19 – 8 in
Working width
150 cm (59 in)
Total width
165 cm (64 in)
No. hoes
32
Weight
290 kg (640 lbs)
Hp
30 - 70
Working width
168 cm (67 in)
Total width
183 cm (73 in)
No. hoes
36
Weight
320 kg (705 lbs)
Hp
30 - 70
Working width
186 cm (71 in)
Total width
201 cm (80 in)
No. hoes
40
Weight
330 kg (728 lbs)
Hp
30 - 70
Working width
204 cm (81 in)
Total width
219 cm (88 in)
No. hoes
44
Weight
362 kg (798 lbs)
Hp
30 - 70
Working width
222 cm (96 in)
Total width
237 cm (95 in)
No. hoes
48
Weight
381 kg (840 lbs)
- 3-POINT HITCH, CATEGORY 2
- CAST IRON GEARBOX, 540 RPM
- CHAIN DRIVE ASA 100 IN OIL BATH WITH
AUTOMATIC TENSIONER - ROTOR WITH 4 HOES PER FLANGE
- OPTIONAL WITH 6 HOES PER FLANGE
- ADJUSTABLE SKIDS
- STANDARD PTO-SHAFT, CATEGORY 4 – 700 MM
- FRONT REINFORCEMENT BAR
- 3-POINT HITCH, CATEGORY 2
- CAST IRON GEARBOX, 540 RPM
- CHAIN DRIVE ASA 100 IN OIL BATH WITH
AUTOMATIC TENSIONER - ROTOR WITH 4 HOES PER FLANGE
- OPTIONAL WITH 6 HOES PER FLANGE
- ADJUSTABLE SKIDS
- STANDARD PTO-SHAFT, CATEGORY 4 – 700 MM
- FRONT REINFORCEMENT BAR
N° 6 hoes per flange
Slip clutch PTO shaft
Shear bolt PTO shaft
